MORA metrology Products
We offer advanced solutions for a wide range of industrial measurement applications. Whether you operate in automotive manufacturing, aerospace, plastics production, or general engineering, MORA Metrology GmbH provides reliable systems tailored to meet your inspection needs.
Bridge-Type Measuring Machines

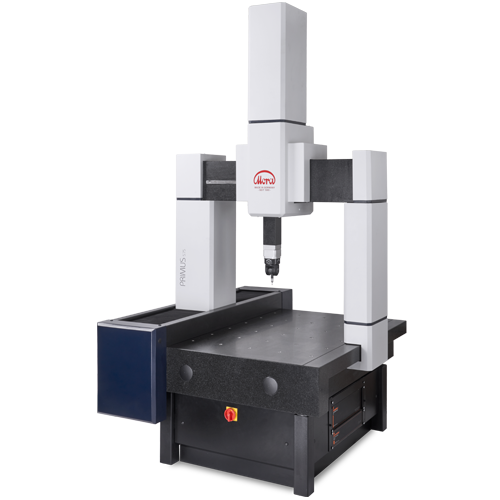

Primus
The Primus model features a solid and space-efficient bridge design supported by precision air bearings and dynamic drive mechanisms across all axes. Its high-precision scale system, paired with an advanced control unit, maintains dependable measurement accuracy. Granite components used throughout the structure help maintain consistent thermal stability. Suitable for both prototype development and serial production, the Primus is widely used in manufacturing and quality assurance environments.

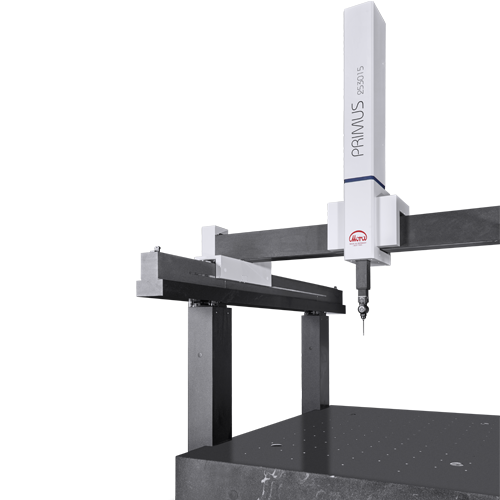

Primus L
The Primus L is designed with a compact yet robust bridge structure that enhances both stability and performance. Its overhead guide axis minimizes the amount of moving mass, allowing for extended measuring ranges across other axes without compromising speed or precision. Equipped with high-accuracy air bearing guides and dynamic drive systems on all axes, the machine ensures smooth operation. A high-resolution scale system combined with a powerful controller delivers exceptional measurement accuracy.

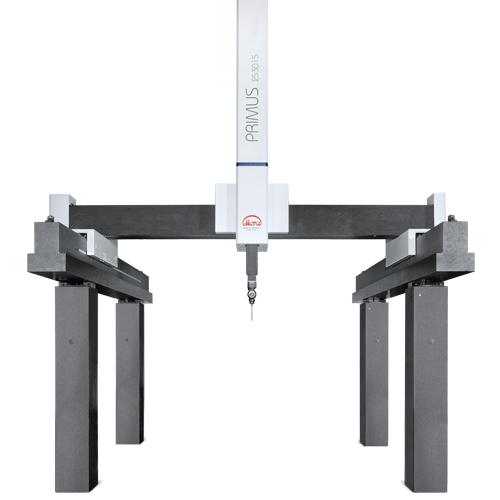

Primus GT
The Primus GT is a high-portal measuring system engineered for larger measuring volumes. Compared to the Primus L, it incorporates dual overhead guide axes powered by a precise twin-drive system. This design reduces moving weight while enabling significantly larger measuring ranges without sacrificing performance or accuracy. Like the other models in the Primus range, it includes precision air bearing guidance, dynamic drive systems, and a high-definition scale setup integrated with a powerful controller to ensure optimal measurement results.
Layout machines

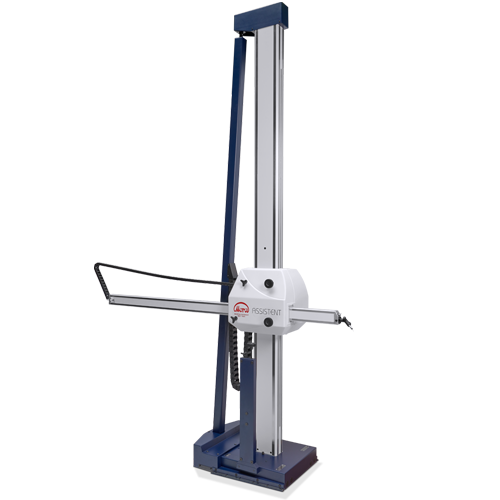

Assistent – Layout Measuring Machine
The Assistent is a manually operated layout measuring system built with a strong, modular structure. Its precision roller-bearing guideways make operation smooth and effortless, even across large measuring ranges. High-resolution scale systems integrated into every axis continuously capture accurate measurement data, enhancing overall performance.
Designed with user-friendly ergonomics, the Assistent is suitable for a wide variety of measurement tasks. Whether used for marking with a digital display or equipped with a probing system and analysis software, it provides a flexible solution for diverse inspection requirements.
Profi – CNC Layout Measuring Machine
The Profi CNC layout machine incorporates the key advantages of the Assistent, including its modular design, precision roller-bearing guidance, and high-definition scale system. Enhanced with a high-accuracy direct drive system and an advanced controller, the Profi delivers powerful CNC performance.
For added flexibility, the drive units can be disengaged to allow manual operation if needed (optional feature). Designed for workshop environments, the Profi can be installed close to production areas. It is widely used in sectors such as automotive, tooling, mold manufacturing, jig production, and product development.

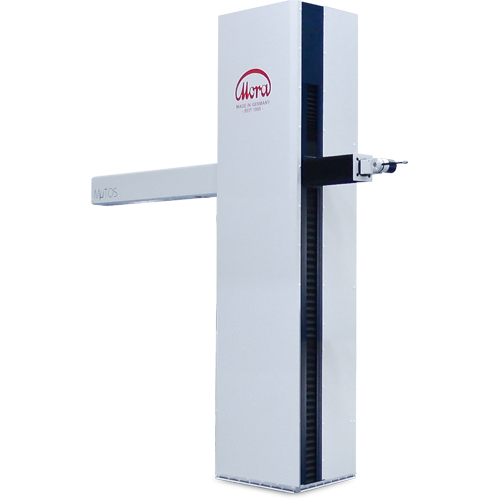

MµTOS – Premium CNC Layout Machine
The MµTOS is a high-end CNC layout measuring system developed specifically for handling very large measuring volumes. Built exclusively for CNC operation, it combines a robust machine structure with precision roller-bearing guideways, high-resolution scale systems, and advanced drive technology to deliver outstanding accuracy and performance.
To maintain precision across extensive measuring ranges, the system is available with two guide widths depending on the Z-axis height configuration. Its floor-level installation with walkable covers ensures easy access to large workpieces.
Fully enclosed guideways make the MµTOS suitable for installation near production environments. It is commonly used in automotive manufacturing, tooling, mold making, supplier industries, and design applications.
Design milling machines

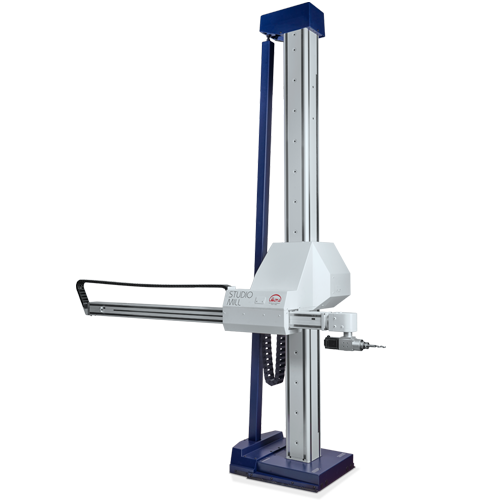

Studio Mill 4 – Design Milling Machine
The Studio Mill 4 is specifically developed to meet the demands of the design and modeling industry. It allows seamless machining of soft materials such as clay, Styrofoam, rigid foam, and flexible foam.
This machine can operate in both 3-axis and 3+2-axis configurations, offering versatility for different design applications. Its robust construction, combined with high flexibility and strong resistance to dust and debris, makes it ideal for studio environments.

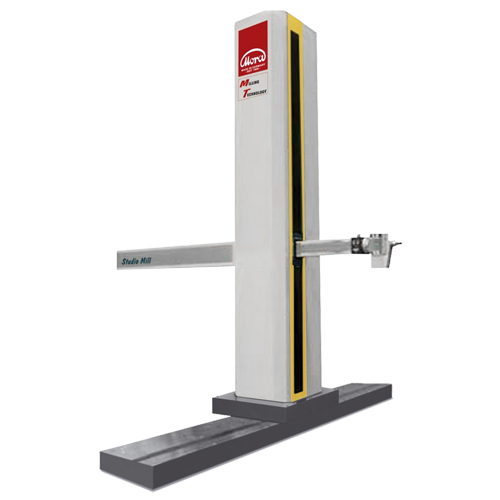

Studio Mill 5 – Design Milling Machine
The Studio Mill 5 is a high-performance milling solution designed for large-scale design and modeling projects. It efficiently processes soft materials including clay, Styrofoam, rigid foam, and flexible foam.
Primarily configured as a 3+2-axis or full 5-axis milling system, it offers enhanced flexibility for complex tasks. Its intelligently arranged machining axes maximize the available working space, supporting large design models.

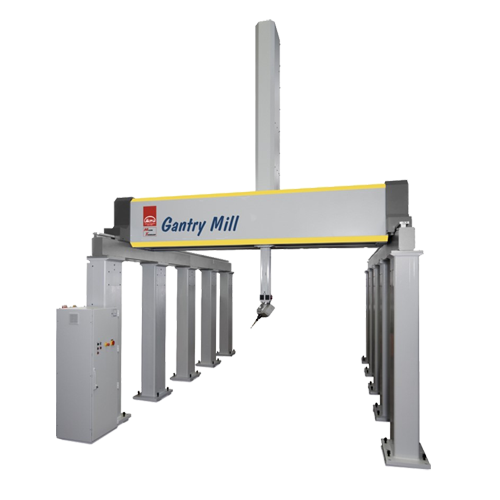

Gantry Mill – Design Milling Machine
The Gantry Mill is engineered for complete multi-sided model machining, enabling efficient processing from five sides. Its rigid bridge-style construction provides exceptional stability to meet the demanding requirements of design and modeling applications.
Paired with a powerful dual-axis milling head, the Gantry Mill enables rapid completion of complex models. It is well-suited for machining materials such as clay, Styrofoam, rigid foam, and flexible foam.
Multi sensor devices and optical measuring devices

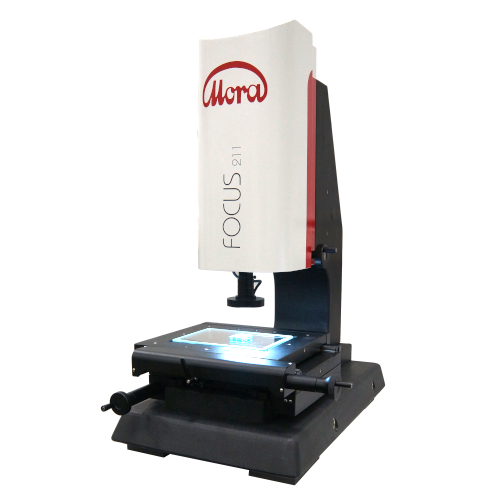

Focus – Coordinate Measuring Device
The Focus is a versatile coordinate measuring system designed for use across various production environments. Its durable construction, built on a natural granite base and supported by high-precision linear guideways, makes it especially suitable for workshop settings and incoming goods inspection.
Measuring Range (mm)
X-axis: 200 to 500
Y-axis: 150 to 400
Z-axis: 150 to 200
Accuracy
MPExy: 2.3 (CNC) / 2.6 (manual) + L/200 (L in mm)
Accuracy values apply at 2x magnification and an ambient temperature of 20°C.

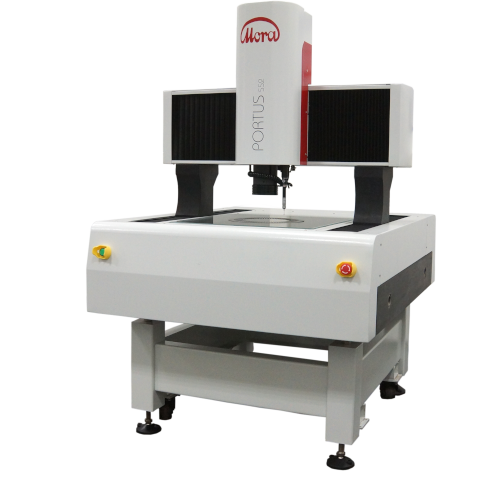

Portus – Optical Coordinate Measuring Machine
The Portus is a universal optical coordinate measuring machine designed in a portal-style structure. With fully integrated guide and drive components, it is engineered for reliable use in manufacturing environments, even when handling larger components.
Measuring Range (mm)
X-axis: 500 to 1600
Y-axis: 500 to 2000
Z-axis: 200 to 300
Accuracy
MPExy: 2.9 + L/200 (L in mm)
Accuracy specifications apply at 2x magnification and an ambient temperature of 20°C.
The Portus offers precision and stability for high-quality inspection tasks in production settings.
